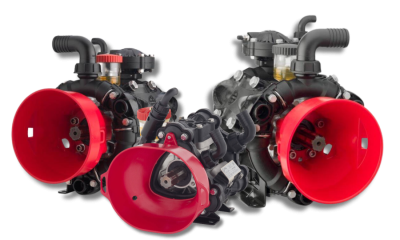

ANNOVI REVERBERI PUMPS FOR FIELD SPRAYERS
Annovi Reverberi field pumps are designed for those who value high-quality workmanship and reliability, which is extremely important during the peak season. The pumps are made with the utmost care and also feature very good availability of spare parts at affordable prices.
The membranes are made of Blueflex material, which, combined with a specially patented pressure plate, creates the so-called "Blueflex system," allowing for a significantly longer lifespan of the membrane, even under heavy loads.
Below, we present the pumps that are consistently available in our offer.
|
|

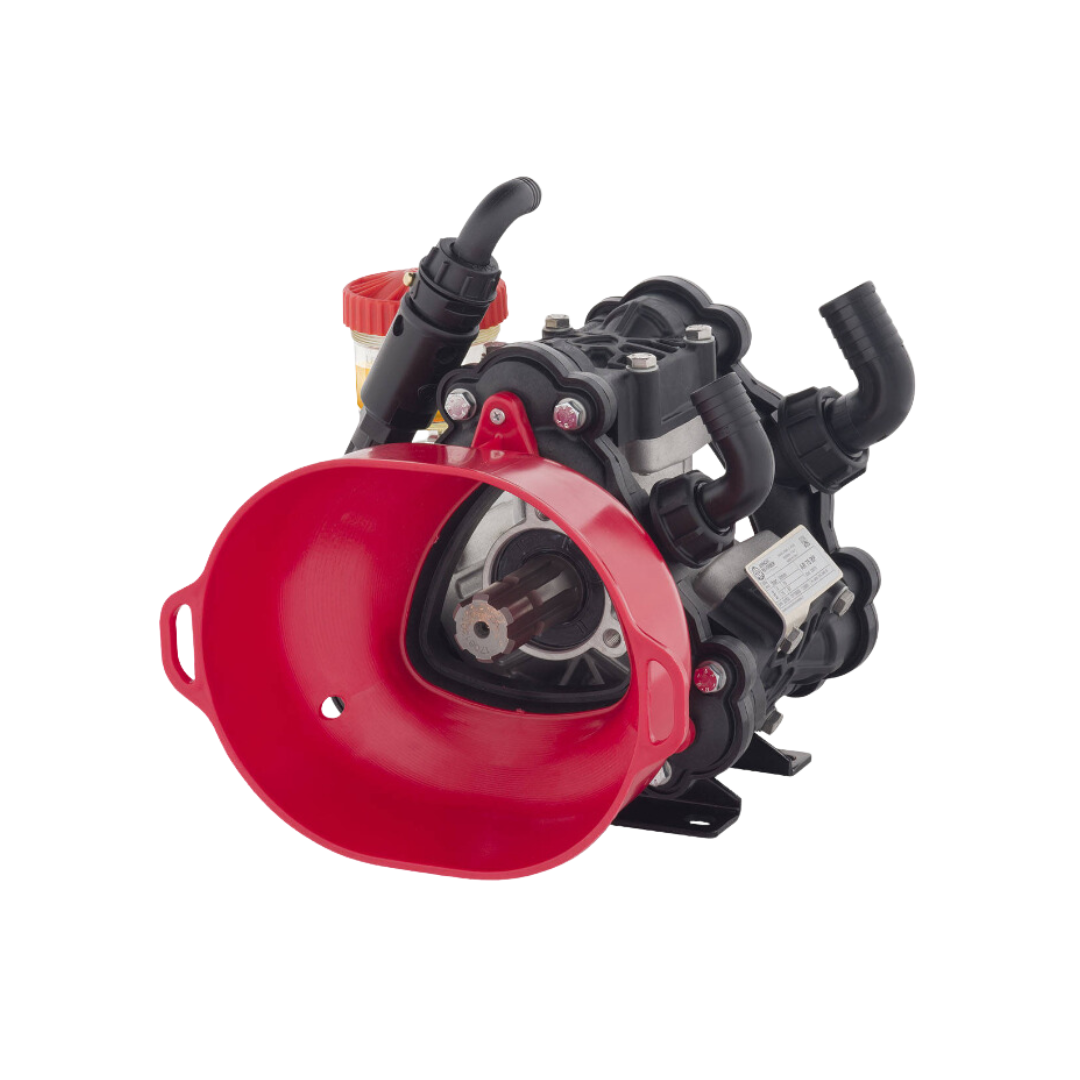

ANNOVI REVERBERI 75 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 3-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 25
- Suction connection: Ø 30
- Maximum pressure (bar): 15
- Maximum flow (l/min): 70
- Number of membranes: 3
_(1).png)
|
|
|

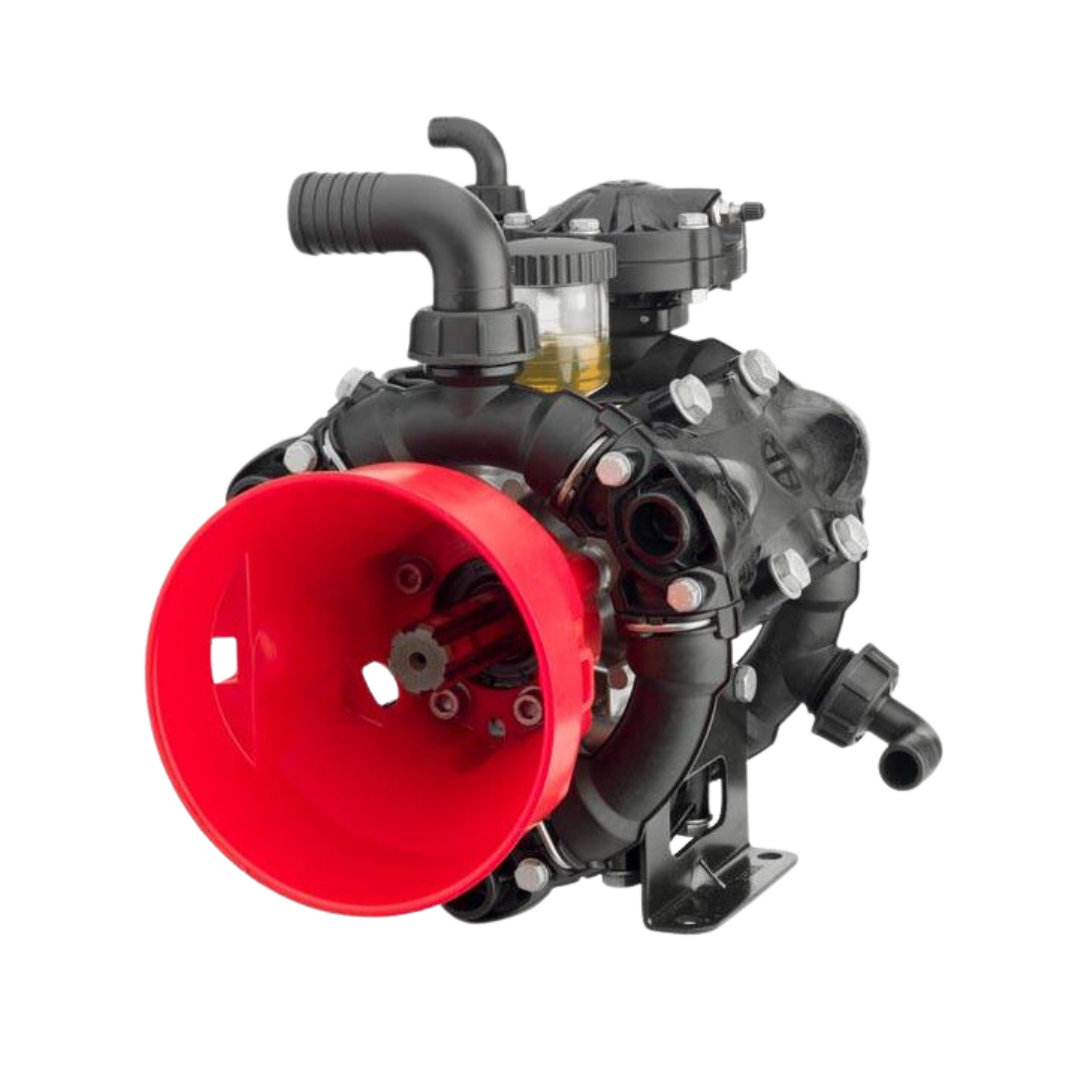

ANNOVI REVERBERI 120 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 3-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 25
- Suction connection: Ø 40
- Maximum pressure (bar): 15
- Maximum flow (l/min): 116.7
- Number of membranes: 3
|
|

|

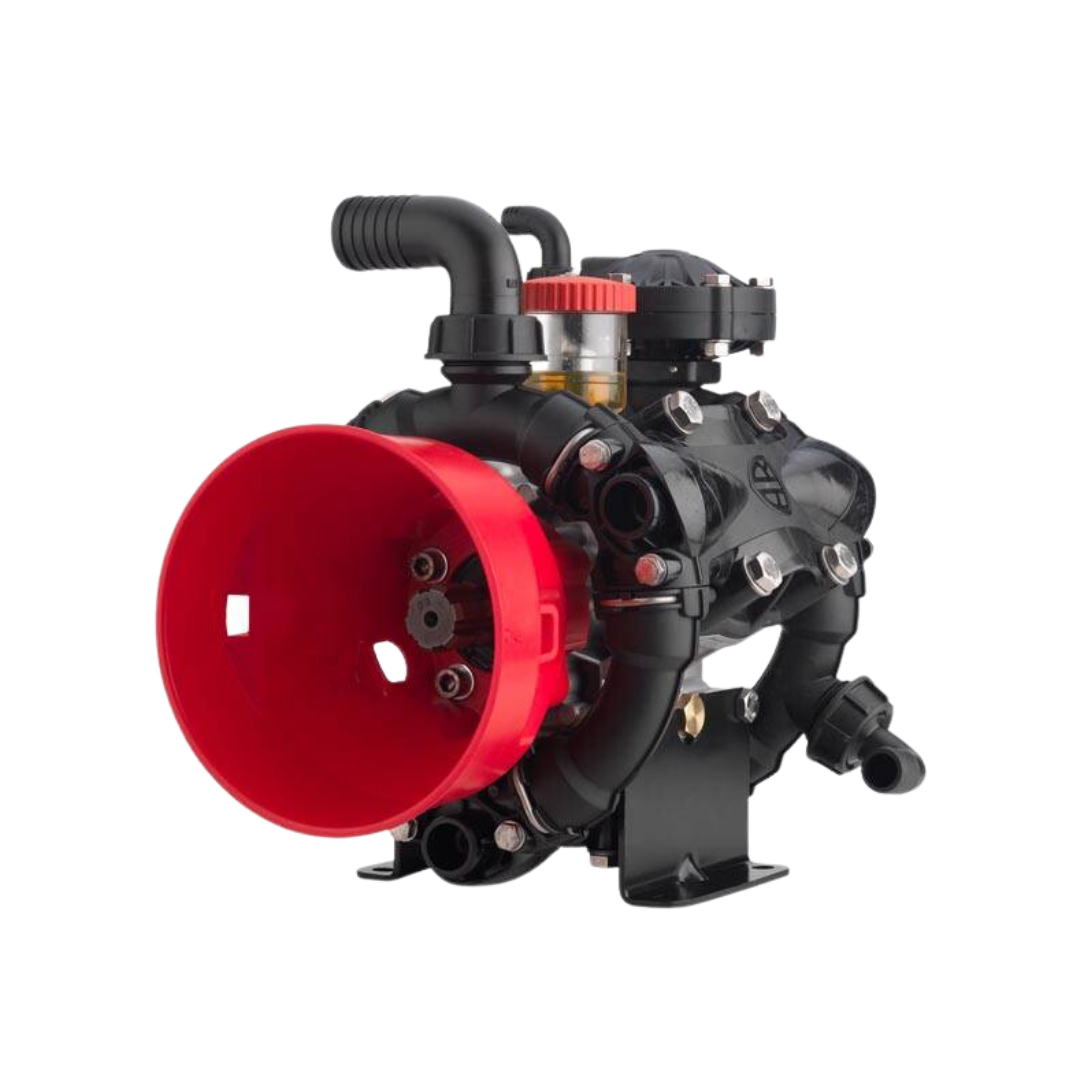

ANNOVI REVERBERI 140 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 3-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 25
- Suction connection: Ø 40
- Maximum pressure (bar): 15
- Maximum flow (l/min): 132.9
- Number of membranes: 3
|
|
|

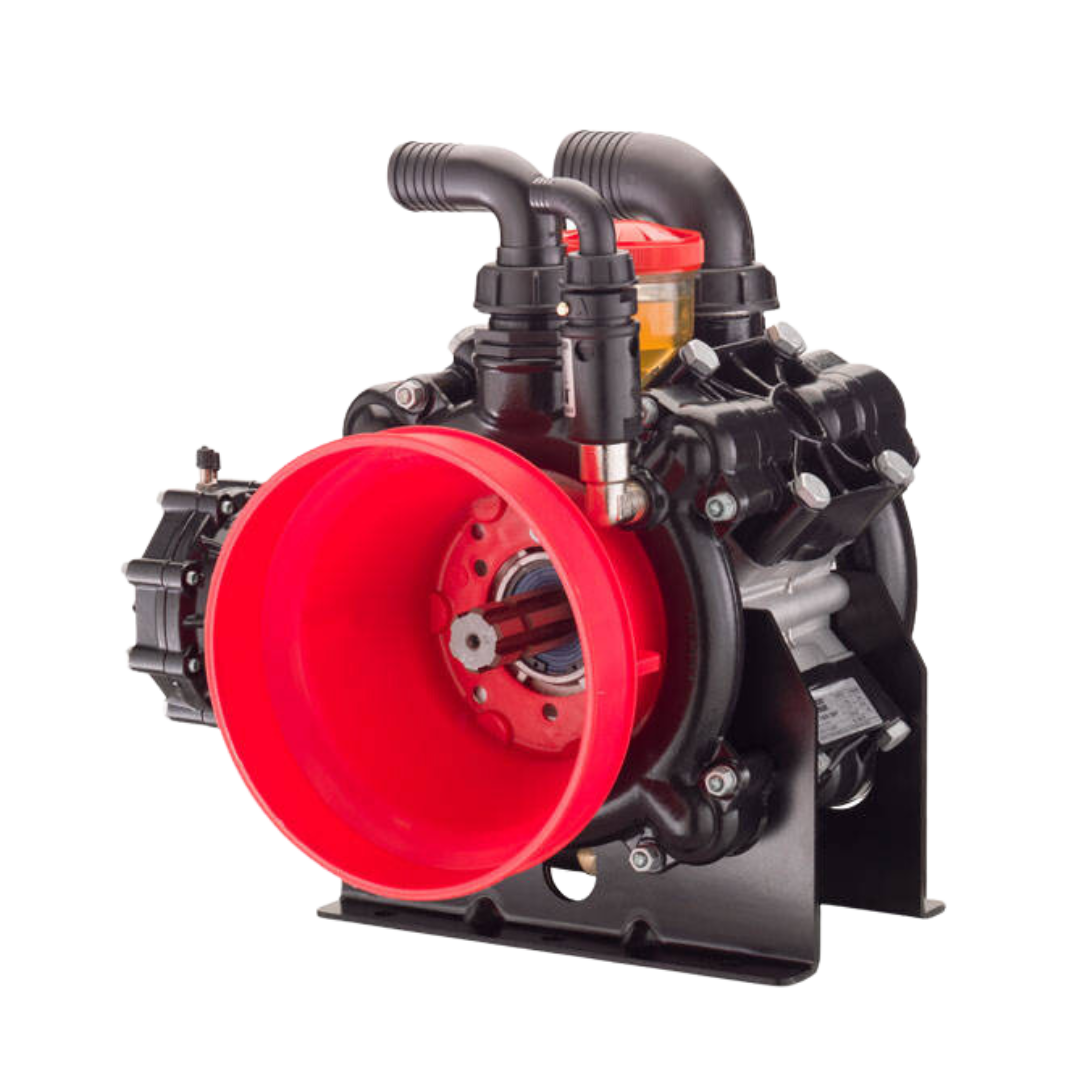

ANNOVI REVERBERI 185 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 4-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 35
- Suction connection: Ø 50
- Maximum pressure (bar): 20
- Maximum flow (l/min): 182.1
- Number of membranes: 4
|
|
|

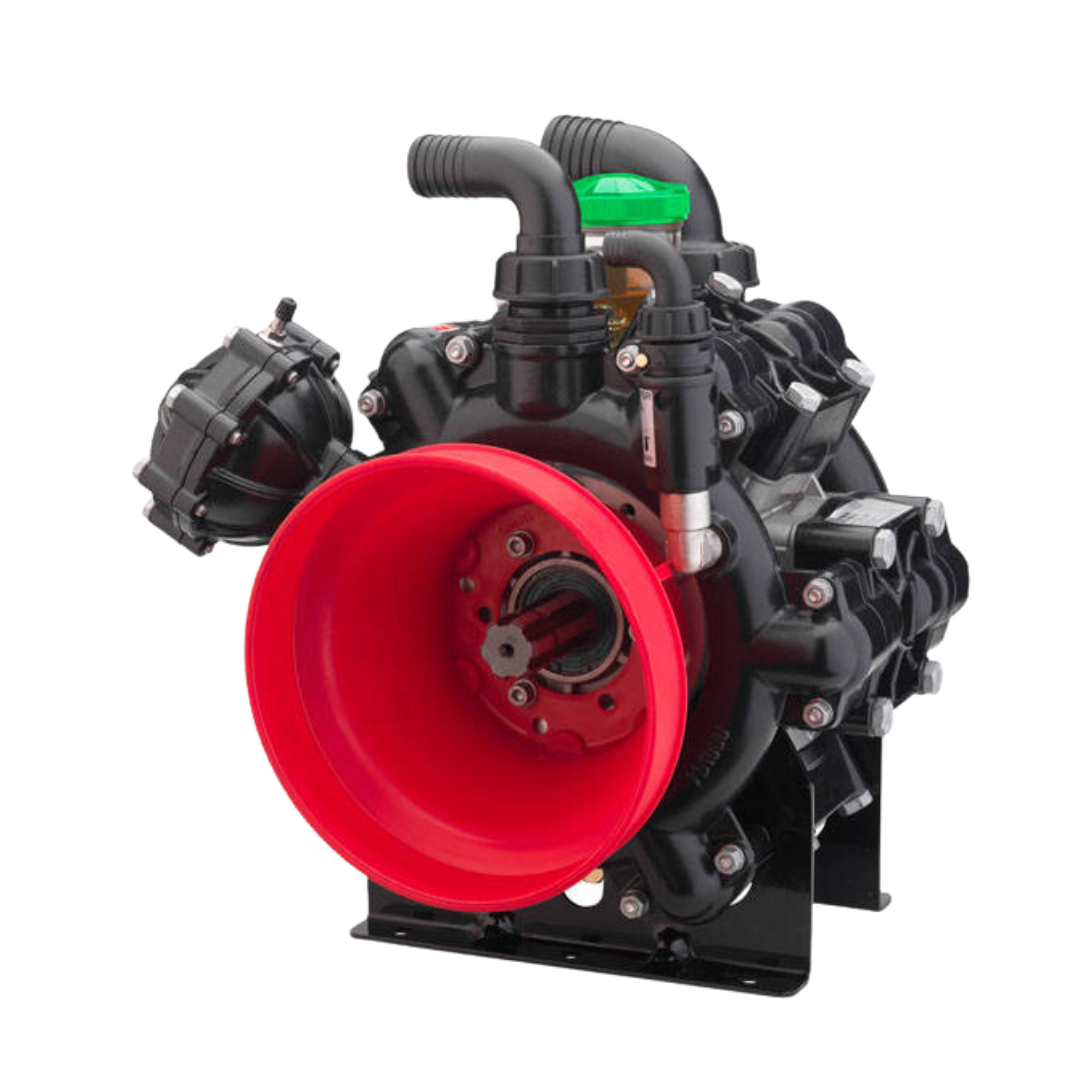

ANNOVI REVERBERI 215 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 6-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 35
- Suction connection: Ø 50
- Maximum pressure (bar): 20
- Maximum flow (l/min): 219
- Number of membranes: 6
|
|
|

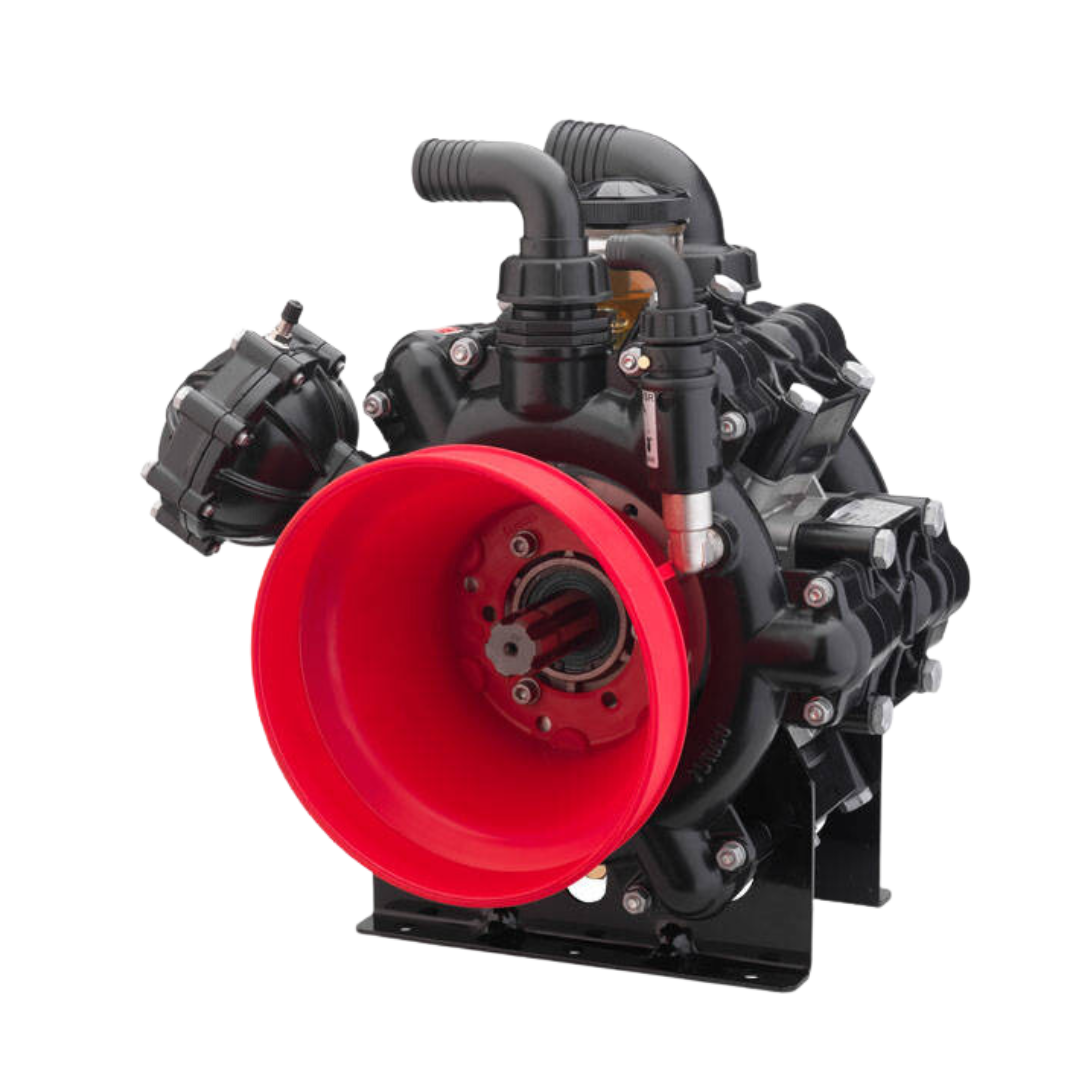

ANNOVI REVERBERI 250 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 6-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 35
- Suction connection: Ø 50
- Maximum pressure (bar): 20
- Maximum flow (l/min): 254.4
- Number of membranes: 6
|
|
|
ANNOVI REVERBERI 280 PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
A 6-membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 35
- Suction connection: Ø 60
- Maximum pressure (bar): 20
- Maximum flow (l/min): 277.8
- Number of membranes: 6
|
|
|

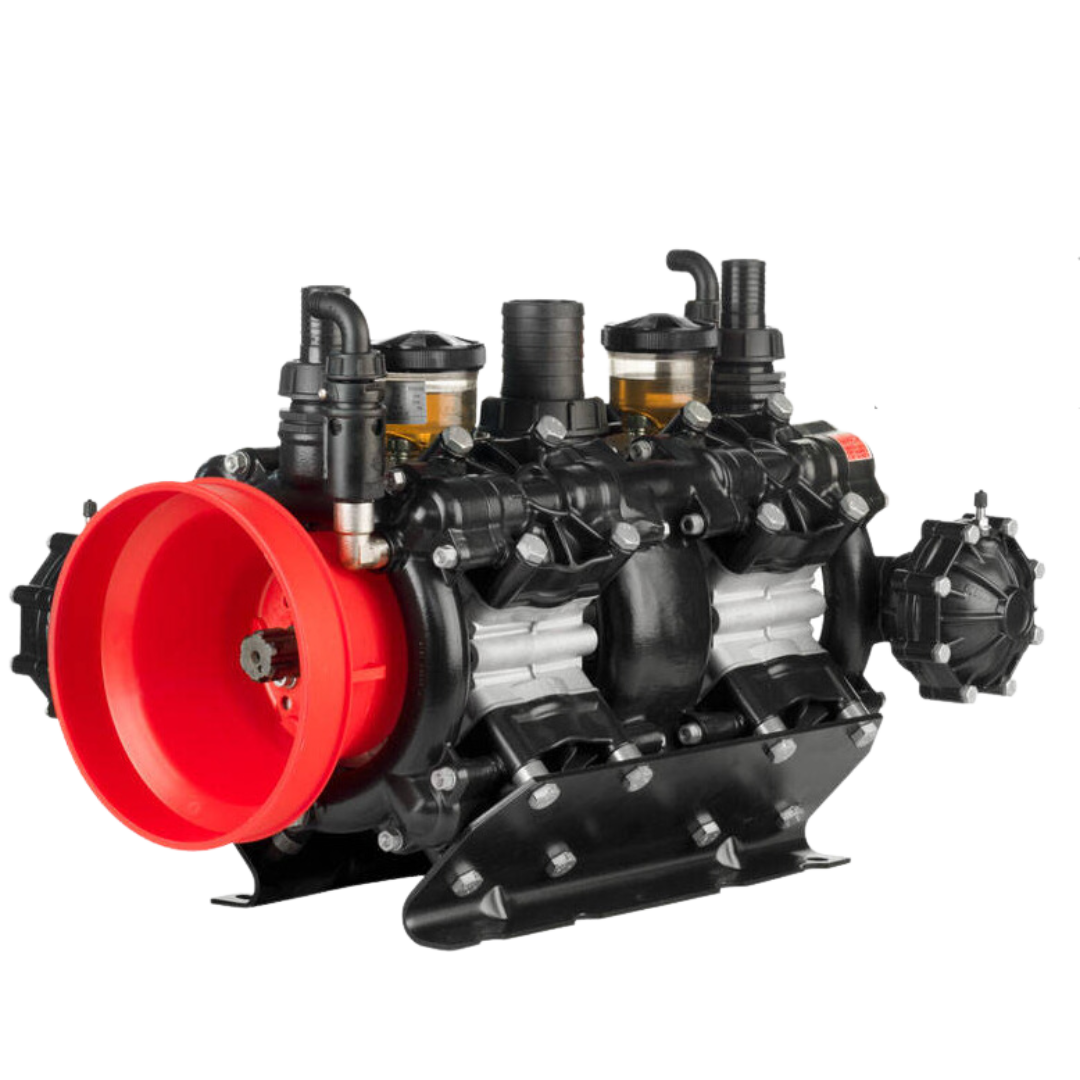

AR 320 TWIN PUMP:
Low-pressure diaphragm and piston pump with a safety valve and air chamber.
An eight (four plus four) membrane pump designed for use in agriculture in low-pressure systems for spraying open field crops with fertilizers, pesticides, or herbicides.
TECHNICAL DATA:
- Discharge connection: Ø 2x 35
- Suction connection: Ø 60
- Maximum pressure (bar): 20
- Maximum flow (l/min): 321.2
- Number of membranes: 8
|
