BY MATIC AR 50

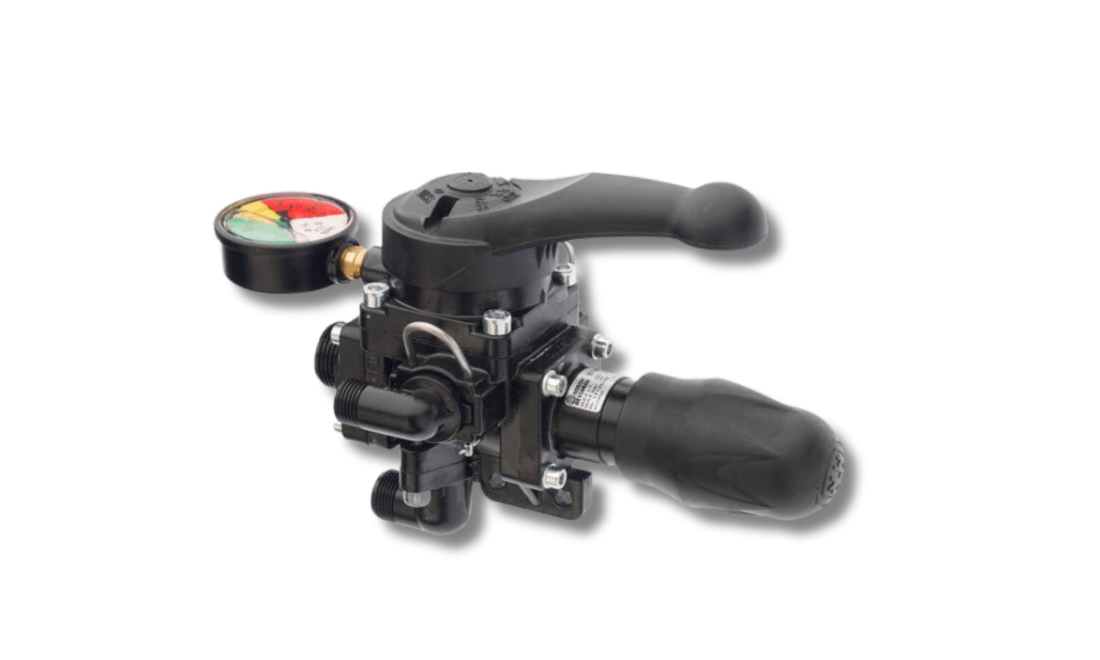

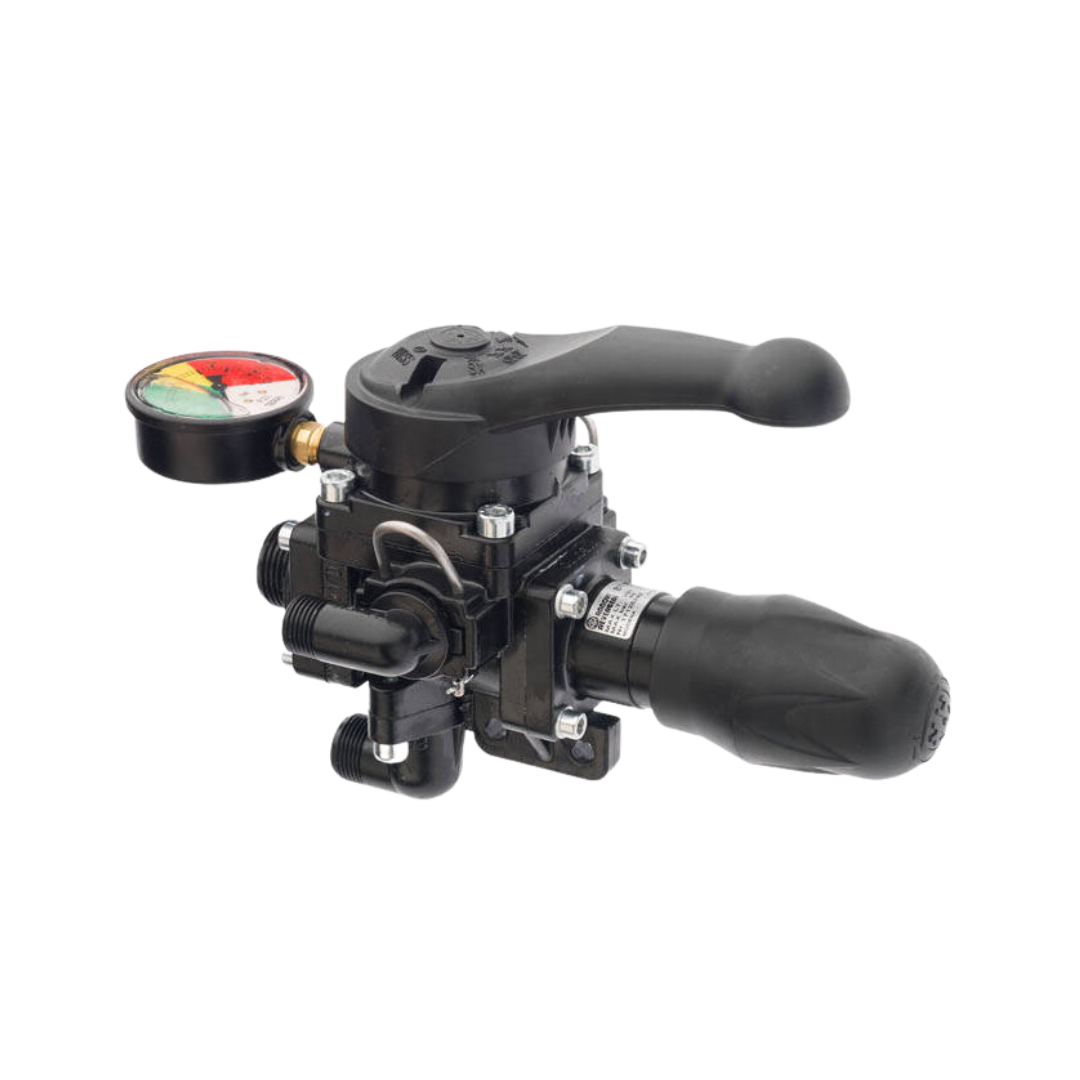

BY MATIC 50 Control Valve is designed for pumps with a maximum flow rate of 160 l/min. Made from high-quality materials, with readily available spare parts.









BY MATIC 50 Orchard Valve

The BY MATIC 50 valve is designed for use in orchards and is suitable for agricultural applications.



Technical Specifications:

  • Maximum Pressure: 50 bar
  • Maximum Flow Rate: 200 liters per minute

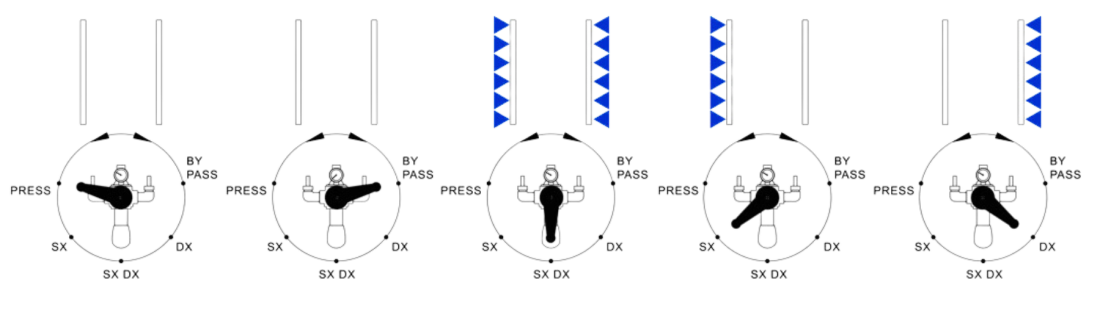

Lever Functions:

  • PRESS - The liquid in the system reaches the pressure indicated on the pressure gauge, which is the setting for good mixing of the liquid.
  • BY PASS - The liquid is directed through the return connection back to the tank.
  • SXDX - The liquid is directed to the spray assemblies located on both sides of the fan attachments.
  • SX - The liquid is directed to the spray assemblies on the left side of the fan attachment.
  • DX - The liquid is directed to the spray assemblies on the right side of the fan attachment.
